PRODUCTS

RTO (Regenerative Thermal Oxidizer)

ROTARY TYPE World's highest VOC removal efficiency
(Continuously maintained above 99% and can reach more than 99%)
The ROTARY structure itself is easy to maintain
The world-wide patented technology developed by our company
Improves installed RTO performance (removal efficiency can be increased to over 99%)


20180704133406jzKG


VALVE ROTARY TYPE RTO SYSTEM

Valve Rotary Type RTO is consist of Pre-heat chamber, Regeneration chamber and purge chamber with 5~7 fan shaped cells.

One half of cell(2~3 cells) is working for pre-heating and the other half of cell(2~3 cells) is working for regeneration of heat in sequence continually by using rotary valve for wind shifting.

In order to prevent mixture of untreated gases and treated gases, purge chamber is placed between pre-heat chamber and regeneration chamber.


201807041334191i55

201807041334283S65



Principles & Features

Extremely high VOCs treatment efficiency (99 ~ 99.5%)

Stable high VOCs removal efficiency is maintained

Strong for rotary sealing and temperature variation

Compact & Simple structure
- No additional device is required

Easy operation & maintenance
- Touch Screen and Simple structure

High heat recovery efficiency (>95%)
- Honeycomb type ceramic

Low Running Cost


201807041334417dCT

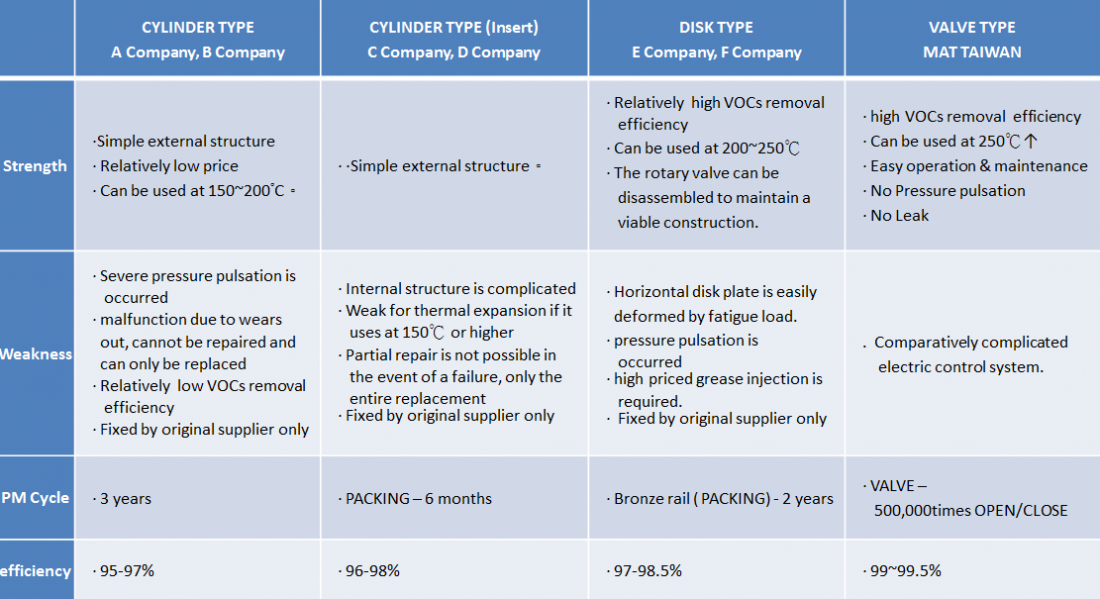

RTO Comparison



20180712153852G91y



VOCs PROCESS RTO


20180704133512R45A
